How to remove conformal coating?

jyuStruggling with coated boards needing repair? Rework can seem impossible, risking damage to delicate components. But don't worry, there are effective ways to tackle this challenge.

Removing conformal coating generally involves methods like chemical stripping, thermal removal, mechanical abrasion (like scraping or micro-abrasive blasting), or precise laser ablation. The best choice depends heavily on the type of coating, the sensitivity of the underlying components, and the level of precision you need for the rework.

What Are The Detailed Methods For Removing Conformal Coating?

Removing conformal coating can feel like a daunting task, especially when you're under pressure to get a product repaired and out the door. I've been there many times in my career, whether it was with the multi-SKU Tuxedo Keypad platform at Honeywell or debugging critical photonic chip evaluation boards at Lightelligence. A cleanly removed coating is the first step to a successful rework. But with so many coating types and removal methods, how do you choose the right one? This section will break down the primary techniques, their pros and cons, and typical applications to help you make an informed decision. Understanding these options is crucial for handling this common but critical task effectively. Let's explore these methods in more detail.

Chemical Stripping

This method uses solvents to dissolve the coating, making it a common choice for soluble materials.

• Suitable Coatings: Most effective for Acrylics (AR). Some Polyurethanes (UR) and Silicones (SR) can also be removed this way, though they may require more aggressive or specialized solvents. Epoxies (ER) and Parylenes (XY) are generally very resistant to chemical stripping.
• Solvents: Common solvents include dichloromethane-based strippers (use with extreme caution due to health concerns and regulations), acetone, ethyl acetate, glycol ethers, or proprietary blended solvents formulated for specific coatings. For example, many acrylics readily dissolve in acetone, but testing on a sacrificial area is crucial as acetone can attack certain plastics. According to IPC-CH-65B¹ ("Guidelines for Cleaning of Printed Boards and Assemblies"), material compatibility is a paramount concern. Always ensure good ventilation and use appropriate Personal Protective Equipment (PPE) like gloves and safety glasses.
• Application: Can involve full immersion (for stripping entire boards, less common for rework) or localized application using a brush, swab, or gel. The solvent needs dwell time (minutes to hours) to soften the coating before it's gently scraped or wiped away.
• Pros: Can be very thorough if the right solvent is used. Relatively low-cost equipment.
• Cons: Solvents can be hazardous and require careful handling and disposal. Incompatible solvents can damage components, plastics, markings, or the PCB substrate itself. May not be suitable for very localized removal without careful masking.

Thermal Removal (Heat Gun / Soldering Iron)

This technique uses heat to soften, melt, or burn through the coating locally.

• Suitable Coatings: Primarily for thermoplastic coatings like Acrylics (AR). Some softer Polyurethanes might also respond. Not generally effective for thermosets like Epoxies or Parylene, which tend to char rather than melt cleanly.
• Method: A temperature-controlled hot air gun or even the tip of a soldering iron (with an old tip you don't mind sacrificing) can be used. The heat is applied locally to the area where the coating needs to be removed, often while gently scraping or lifting the softened coating. Temperature control is critical; for acrylics, temperatures around 150°C to 200°C might be sufficient, but always start low and increase gradually. Exceeding 300°C risks damaging most PCBs and components.
• Pros: Can be quick for localized spot removal. No chemical waste.
• Cons: High risk of overheating and damaging sensitive components or the PCB substrate (delamination, lifted pads). Fumes from burning coating can be toxic and require good extraction. Not very precise for large areas. I recall a time on a prototype where quick thermal removal was attempted, and a nearby sensitive sensor was inadvertently damaged by the heat – a lesson learned about careful shielding.

Mechanical Removal

This involves physically abrading, scraping, peeling, or cutting the coating.

• Suitable Coatings: Can be used for almost any coating type, but particularly useful for harder coatings like Epoxies (ER) and Polyurethanes (UR) that resist chemicals, or for coatings that are too thick for easy thermal removal. Softer coatings like Silicones (SR) can sometimes be peeled or gently scraped.
• Tools: Options range from basic tools like wooden sticks, plastic scrapers, and scalpels to specialized carbide scrapers, brushes (stiff bristle, wire), or even micro-grinding tools with rubberized abrasive bits.
• Technique: Requires patience and a very steady hand. The goal is to remove the coating without cutting traces, damaging pads, or stressing component leads.
• Pros: No chemicals involved. Can be highly localized with skill.
• Cons: Very labor-intensive and operator-dependent. High risk of accidental damage to the PCB or components if not done with extreme care. Generates dust and debris.

Micro-Abrasive Blasting (Powder Abrasion)²

This is a more controlled mechanical removal method using fine abrasive particles.

• Suitable Coatings: Highly effective for most coating types, including tough-to-remove Epoxies, Polyurethanes, and Parylenes.
• Method: A fine stream of abrasive particles (e.g., sodium bicarbonate, aluminum oxide, wheat starch, or glass beads, typically 20-50 microns in diameter) is propelled by compressed air through a small nozzle onto the coated area. An ESD-safe version is critical for electronics to prevent static discharge damage. Often used with a vacuum system to capture debris.
• Pros: Provides precise, localized removal, even on complex geometries. Faster than manual scraping for tough coatings. Can remove coating from around and under components to some extent.
• Cons: Requires specialized equipment. Risk of abrasive media becoming embedded in unsealed components or connectors if not carefully masked. Can generate static charges if not an ESD-safe system. The selection of abrasive type and pressure (typically 30-90 PSI, or 2-6 bar) is critical to avoid damaging the substrate.

Laser Ablation³

This is an advanced, high-precision removal technique utilizing laser energy.

• Suitable Coatings: Effective for most organic coatings such as Acrylics, Polyurethanes, Silicones, Epoxies, and Parylenes.
• Method: A focused laser beam (commonly CO2 lasers with a wavelength of 10.6 µm, or UV lasers for finer work) is scanned over the coated area. The laser energy is absorbed by the coating, causing it to vaporize (ablate) layer by layer.
• Pros: Extremely precise and selective, allowing for complex removal patterns. No-contact method, minimizing mechanical stress. Can be automated for repeatability. Minimal debris if parameters are optimized.
• Cons: High initial equipment cost. Requires careful optimization of laser parameters (power, scan speed, pulse frequency) for each specific coating type and thickness to avoid damaging the underlying substrate or components. Potential for hazardous fumes requiring extraction. Working on the PACE evaluation board for a photonic chip at Lightelligence, I saw how such precise, non-contact methods would be invaluable for reworking high-value, delicate assemblies if they were coated.

To help you compare these methods, here’s a summary table:

Removal Method	Suitable Coatings	Precision	Speed	Equipment Cost	Key Risks / Cons
Chemical Stripping	AR, some UR, some SR	Low-Med	Slow-Med	Low	Component damage, hazardous waste, fumes, masking needed.
Thermal Removal	AR, some softer UR	Low-Med	Med	Low-Med	Component overheating, board damage, toxic fumes.
Mechanical Removal	Most types (esp. ER, UR)	Med-High	Slow	Low	PCB/component damage, labor-intensive, operator skill dependent.
Micro-Abrasive	Most types (esp. ER, UR, XY)	High	Med-Fast	Med-High	Specialized equipment, abrasive residue, static risk, masking needed.
Laser Ablation	Most organic coatings (AR, UR, SR, ER, XY)	Very High	Fast	High	High initial cost, parameter optimization needed, potential thermal effects, fumes.

Choosing the right method, or combination of methods, is key. For example, you might chemically soften a tough coating and then gently scrape it away. Always prioritize the safety of the operator and the integrity of the PCB assembly. Diligent evaluation of the coating type, assembly complexity, and available resources will guide you to the best approach.

---

How to inspect conformal coatings?

Unsure if your conformal coating application is truly protecting your PCB? Hidden defects can creep in and cause serious field failures later. Proper inspection is absolutely crucial for reliability.

You can inspect conformal coatings visually, often aided by UV light if the coating has a fluorescent tracer. For more thorough checks, Automated Optical Inspection (AOI) systems are used, and coating thickness can be verified using tools like wet film gauges, eddy current probes, or ultrasonic gauges.

Ensuring the integrity of conformal coatings was a big part of my work, especially for products going into diverse international markets like the Tuxedo Keypad, which had to meet various compliance standards such as UL and VdS. A missed coating defect could mean a costly recall or a damaged reputation. There are several ways to make sure your coating is up to par, each with its own strengths and applications. Let's delve into these inspection techniques.

Visual Inspection

This is the most basic method but still very effective for catching obvious flaws.

• White Light Inspection: You're looking for obvious issues under normal bright lighting (typically 800-1000 lux or 75-95 foot-candles on the inspection surface). Check for uniform coverage, evenness, and cosmetic defects like runs, sags, or foreign particles. Ensure that areas meant to be uncoated (like connector pins or test points) are indeed free of coating. According to IPC-A-610⁴ ("Acceptability of Electronic Assemblies"), the coating should be uniform and cover all required areas without exposing conductors. Magnification, often 1.75X to 4X for general inspection and up to 10X for referee purposes, is typically used as per IPC-A-610 guidelines.
• UV Light Inspection: Many conformal coatings include a UV tracer that fluoresces under UV light, making it much easier to see the coverage. This is extremely helpful for identifying areas with thin or missing coating. The typical wavelength for UV inspection lamps is in the 365 nm range (long-wave UVA). IPC-A-610 provides guidelines on UV inspection, emphasizing consistent coverage. It's important to use the correct UV wavelength as specified by the coating manufacturer and ensure appropriate UV light intensity at the inspection surface (e.g., a minimum of 800 µW/cm² is often recommended, though specific coating datasheets might offer guidance).

Automated Optical Inspection (AOI)⁵

For higher volume production or when greater consistency and speed are needed, AOI systems come into play.

• How it works: AOI systems use cameras (often with resolutions enabling detection of features down to a few microns) and specialized lighting (including white, colored, and UV light) combined with software algorithms to automatically inspect PCBs for coating defects. They can detect issues like insufficient coverage, excessive thickness in certain areas, bubbles, and contamination much faster than a human operator.
• Advantages: AOI offers speed (inspecting a board in seconds versus minutes for manual), repeatability, and the ability to detect subtle defects that might be missed by eye. I’ve seen AOI significantly improve outgoing quality in high-volume scenarios, reducing inspector fatigue and subjectivity.
• Limitations: These systems require initial programming and careful "teaching" of good and bad examples. They can sometimes generate false positives (flagging a good board as bad) or false negatives if not calibrated correctly or if lighting/angles aren't optimized for certain defect types. They also might struggle with highly complex 3D topographies or very transparent coatings without UV tracers.

Thickness Measurement

Verifying the coating thickness is critical, as both too thin and too thick can cause problems.

• Wet Film Gauges: Used immediately after coating application, before curing. These are simple, low-cost toothed combs or rolling gauges. They give an indication of the wet film thickness (e.g., from 25 to 2000 µm), which can then be correlated to the dry film thickness using the percent solids content of the coating (Dry Film Thickness = Wet Film Thickness x % Solids by Volume).
• Eddy Current Probes: These instruments measure the thickness of non-conductive coatings on conductive substrates (like copper traces on an FR-4 PCB). They are non-destructive and provide quick, accurate readings. The probe induces eddy currents in the substrate, and the coating thickness affects the probe's impedance. Accuracy can be around ±1 to ±3 microns or a small percentage (e.g., 1-3%) of the reading for well-calibrated systems. Common for dry film measurement.
• Ultrasonic Gauges: These can measure coating thickness on both conductive and non-conductive substrates, and can even measure individual layers in a multi-layer coating system if the acoustic impedances are sufficiently different. An ultrasonic pulse is sent through the coating, and the time it takes for the echo to return from the coating-substrate interface (or coating-coating interface) is used to calculate thickness. Accuracy is similar to eddy current methods.
• Micrometers/Dial Indicators: Less common for general inspection due to potential for damaging the coating and limited access to coated surfaces, but can be used for destructive testing on test coupons or for calibration of other methods. Measurement involves taking a reading on an uncoated area, then a coated area, and calculating the difference.

Here's a table summarizing these inspection methods:

Inspection Method	Principle	Key Defects Detected	Pros	Cons
Visual (White Light)	Manual observation under bright light.	Runs, sags, foreign particles, gross coverage issues.	Low cost, simple, versatile.	Subjective, operator fatigue, misses subtle defects, slow for high volume.
Visual (UV Light)	Manual observation under UV light (for tracer).	Thin spots, voids, incomplete coverage, contamination.	Enhances visibility of UV-traced coatings, good for coverage check.	Requires UV tracer in coating, UV safety precautions needed.
AOI	Automated camera & software analysis.	Coverage, thickness variations, bubbles, contamination.	Fast, repeatable, objective, good for high volume.	High initial cost, programming needed, potential false calls.
Wet Film Gauge	Measures wet coating height immediately after application.	Initial wet thickness.	Low cost, immediate feedback for process control.	Only measures wet film, operator dependent, can mar surface.
Eddy Current Probe	Electromagnetic induction (non-conductive coating on conductive sub.).	Dry film thickness.	Non-destructive, accurate, fast.	Only for non-conductive coatings on conductive substrates.
Ultrasonic Gauge	Ultrasonic pulse reflection.	Dry film thickness (can do multi-layer).	Non-destructive, accurate, works on various substrates/coatings.	Can be more expensive, requires good coupling, surface roughness sensitive.

The IPC-CC-830C ("Qualification and Performance of Electrical Insulating Compound for Printed Wiring Assemblies") standard is a key reference for coating properties, including thickness and coverage. Regular inspection, often combining several of these methods, is essential to ensure the coating meets its intended protective function throughout the product's lifecycle.

---

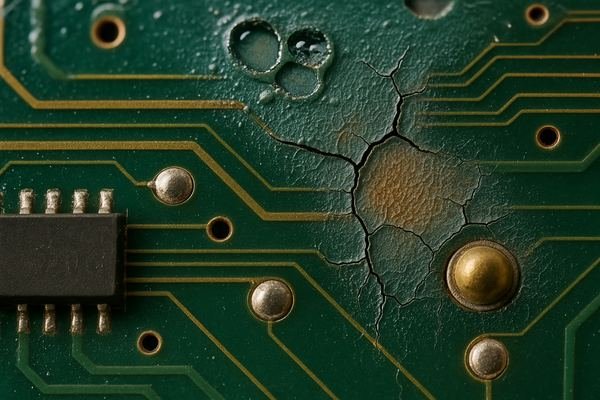

What are common conformal coating defects?

You've applied conformal coating hoping it will protect your sensitive electronics, but what if the application itself is flawed? Various defects can occur, potentially compromising the board's long-term reliability.

Common conformal coating defects include bubbles, voids, pinholes, dewetting (where the coating pulls back from surfaces), an "orange peel" texture, insufficient or excessive thickness, cracking, and delamination (lifting from the board). Each of these can impact the protective qualities of the coating.

In my experience, especially during new product introductions like the next-generation infusion pump at Smiths Medical, identifying and mitigating coating defects early in the DVT (Design Validation Test) phase was critical. A seemingly minor bubble could be a failure point in a humid environment, leading to field issues. Understanding these defects, their root causes, and crucially, how to prevent or remedy them is paramount for producing consistently reliable hardware. The IPC-A-610 standard provides detailed visual acceptability criteria for many of these defects, often distinguishing between "Target," "Acceptable," "Process Indicator," and "Defect" conditions based on the product class.

Here’s a detailed breakdown of common issues:

Defect	Description	Common Causes	Prevention/Remedy	IPC-A-610 Reference (Illustrative section for guidance)
Bubbles/Voids	Trapped air or solvent within the cured coating. Large bubbles can expose underlying circuitry.	Coating viscosity too high; solvent entrapment from rapid curing (skinning over); outgassing from PCB (moisture, flux residues); air agitated into coating during mixing or application.	Optimize coating viscosity (e.g., per manufacturer datasheet); use recommended cure schedule (e.g., allow solvent flash-off time of 5-15 minutes at room temp before heat cure); ensure PCBs are clean and dry; pre-bake boards if outgassing is suspected (e.g., 1-2 hours at 80-100°C); de-aerate coating material.	Section 10.8.3.3 (Bubbles, Voids, Blisters)
Pinholes	Tiny holes extending through the coating to the substrate, potentially allowing moisture ingress.	Surface contamination (oils, dust, silicones); air trapped during spraying; outgassing from components or substrate during cure.	Thoroughly clean and dry PCBs before coating (e.g., using IPA or specialized cleaners); optimize spray application parameters (air pressure, fluid flow); pre-bake boards.	Section 10.8.3.7 (Pinholes/Blisters in Soldermask - analogous principles apply to conformal coating)
Dewetting	Coating fails to wet a surface uniformly, receding to leave beads or uncoated patches.	Surface contamination (flux residue, oils, silicones, mold release agents); low surface energy of the substrate or components; incompatible cleaning agents leaving residues.	Ensure meticulous cleaning and surface preparation (surface energy > 38 dynes/cm often cited as good for adhesion); consider plasma treatment or primers for low surface energy materials; verify cleaning process effectiveness.	Section 10.8.3.4 (Dewetting/Nonwetting)
Orange Peel	A textured, uneven surface resembling an orange peel, affecting smoothness and potentially thickness uniformity.	Incorrect spray gun settings (pressure too high/low, distance too close/far); coating viscosity too high; solvent evaporates too quickly; drafts during application.	Adjust spray parameters (e.g., typical air pressure 20-60 PSI for conventional spray); thin coating to correct viscosity; use slower evaporating solvents if appropriate for the coating type; control application environment.	Section 10.8.3.1 (General Appearance - wrinkles, sags imply texture issues)
Insufficient Thickness/Coverage	Coating layer is too thin or missing in areas, failing to provide adequate protection.	Incorrect application settings (flow rate, pass speed); material viscosity too low; insufficient coats applied; shadowing by tall components.	Calibrate application equipment; ensure correct material mixing and viscosity; apply multiple thin coats if necessary (e.g., two coats of 25 µm better than one attempt at 50 µm sometimes); adjust application angles for complex geometries.	Section 10.8.3.1 (Coverage) / 10.8.3.2 (Thickness)
Excessive Thickness/Buildup	Coating layer is too thick, potentially causing stress, cracking, or curing issues.	Incorrect application settings; material viscosity too high; poor drainage on complex geometries or around component bases; multiple overlapping passes.	Calibrate application equipment; ensure correct material mixing and viscosity; optimize board orientation during application and curing to promote run-off; avoid excessive material in corners or on specific components.	Section 10.8.3.2 (Thickness)
Cracking/Crazing	Fissures or fine cracks in the coating, often over component edges, solder joints, or areas of board flexure.	Coating shrinkage during cure; CTE mismatch between coating and board/components (especially with rigid epoxies); excessive thickness; board flexure during or after cure; thermal shock.	Select a more flexible coating if thermal cycling or flexure is significant (e.g., silicones); control coating thickness (thinner is often better for crack resistance); ensure proper and full cure; minimize board flex.	Section 10.8.3.5 (Cracking/Crazing)
Delamination/Adhesion Loss	Coating loses adhesion and lifts from the substrate or components, creating gaps.	Poor surface preparation (contamination, moisture); incompatible primer or coating; insufficient cure; stress from underlying material outgassing.	Ensure thorough cleaning and surface prep (e.g., using adhesion promoters or plasma if needed); use appropriate primers if recommended by coating mfg.; ensure full cure before stressing. Perform adhesion tests (e.g., tape test per ASTM D3359).	Section 10.8.3.6 (Adhesion/Delamination)
Contamination/Foreign Material	Particles (dust, fibers, coating flakes) embedded in or under the coating.	Unclean application environment; contaminated coating material; dirty application equipment; shedding from operators or fixtures.	Maintain a clean coating area (e.g., controlled environment, ideally Class 10,000 or better for sensitive applications); filter coating material before use; clean equipment regularly; use lint-free wipes and garments.	Section 10.8.3.8 (Foreign Material/Contamination)

Addressing these defects often involves a combination of material selection, process optimization, and meticulous operator training. During my time leading hardware for complex projects, establishing a robust process control plan, including regular audits of the coating process and diligent inspection of coated assemblies, was non-negotiable for building reliable products. A small investment in understanding and controlling these potential defects upfront saves enormous costs and potential field failures later on.

---

What is the thickness requirement for conformal coatings?

You're applying conformal coating to protect your electronics, but how much is enough, and how much is too much? Applying the correct thickness is a balancing act: too thin offers inadequate protection, while too thick can lead to other problems like cracking or excessive stress on components.

Conformal coating thickness requirements vary by coating type and the governing application standard (e.g., IPC-CC-830C or the older MIL-I-46058C). Typically, acrylics (AR) are 25-75 µm, polyurethanes (UR) 25-125 µm, silicones (SR) 50-200 µm, epoxies (ER) 25-75 µm, and parylene (XY) is much thinner, typically 5-50 µm.

The choice of coating thickness isn't arbitrary. It's a critical parameter that directly impacts the reliability and performance of the electronic assembly. In my aerospace projects, for instance, meeting precise thickness specifications was non-negotiable due to the extreme environmental conditions (temperature swings, vacuum, radiation) and the need for high dielectric strength to prevent arcing. Similarly, for medical devices like the infusion pumps I worked on at Smiths Medical, consistent coating thickness, often validated to a specific range like 50-125 µm for the chosen polyurethane, was vital for long-term performance, biocompatibility, and patient safety. Understanding these requirements is the first step to a successful coating application.

Here's a general guide to typical dry film thickness ranges based on industry standards like IPC-CC-830C (Qualification and Performance of Electrical Insulating Compound for Printed Wiring Assemblies)⁶, which has largely superseded the older MIL-I-46058C:

Coating Type	Common Abbreviation	Typical Dry Film Thickness (IPC-CC-830C / Industry Practice)	MIL-I-46058C7 (Historical Reference, Class B)	Key Characteristics & Considerations
Acrylic Resin	AR	25 - 75 µm (0.001 - 0.003 inches)	0.002 ± 0.001 inches (50.8 ± 25.4 µm)	Easy to apply and remove, good humidity resistance, general purpose. Best for moderate environments.
Epoxy Resin	ER	25 - 75 µm (0.001 - 0.003 inches)	0.002 ± 0.001 inches (50.8 ± 25.4 µm)	Hard, durable, good chemical and abrasion resistance. Difficult to remove; can stress components if too thick.
Polyurethane Resin	UR	25 - 125 µm (0.001 - 0.005 inches)	0.002 ± 0.001 inches (50.8 ± 25.4 µm)	Excellent chemical and humidity resistance, good abrasion resistance. Can be hard to remove; variety of formulations (rigid to flexible).
Silicone Resin	SR	50 - 200 µm (0.002 - 0.008 inches)	0.005 ± 0.003 inches (127 ± 76.2 µm)	Flexible over wide temperature range (-65°C to 200°C typical), good humidity resistance, good for high temps. Low mechanical strength.
Parylene (Types N, C, D, F-VT4)	XY	5 - 50 µm (0.0002 - 0.002 inches) typically; some apps up to 75 µm. MIL: 12.7 - 50.8 µm.	0.0005 - 0.002 inches (12.7 - 50.8 µm)	Very thin, excellent uniformity (pinhole-free), excellent barrier (moisture, chemical), applied via vapor deposition. Higher cost.

Why is Thickness So Important?

The specified thickness range is crucial for several reasons:

• Too Thin: If the coating is below the minimum specified thickness (e.g., less than 25 µm for many liquid coatings), it may not provide adequate dielectric strength (protection against arcing, often requiring several hundred volts/mil or V/25µm), moisture resistance, or protection from contaminants. Pinholes and insufficient edge coverage on components and sharp solder joints become more likely. For example, a coating of only 10 µm might fail a 100V dielectric withstanding voltage test or not survive a 1000-hour damp heat test (e.g., 85°C/85%RH) as per JESD22-A101.
• Too Thick: Excessive coating (e.g., over 200-250 µm for some silicones or urethanes, or over 100 µm for acrylics/epoxies unless specifically designed) can cause its own set of problems. It can trap solvents, leading to bubbles or slow/incomplete curing. Thick coatings can exert mechanical stress on component leads and solder joints, especially during thermal cycling (e.g., -40°C to +125°C as per JESD22-A104), potentially leading to premature failures. This was a major concern for densely packed boards I designed; too much coating could bridge fine-pitch components (e.g., <0.5mm pitch) or cause stress fractures in solder joints of delicate parts like ceramic capacitors. For some components, a very thick coating can also impede heat dissipation, raising component temperatures by several degrees Celsius, which can affect performance and lifespan.

Factors Influencing Thickness Choice

Beyond the general guidelines provided by standards, the optimal thickness for a specific application can depend on:

• Operating Environment: Harsher environments (e.g., high humidity, salt spray as per ASTM B117, chemical exposure, high altitude with increased risk of corona discharge) may necessitate thicknesses towards the upper end of the recommended range or the selection of more robust coating types like Parylene or thicker Urethanes.
• Voltage Levels: Higher operating voltages across conductors necessitate sufficient dielectric strength from the coating, which is directly related to its thickness and material properties. For instance, IPC-2221B (Generic Standard on Printed Board Design)⁸ provides guidance on conductor spacing for various voltage levels, and the coating must reliably supplement this electrical insulation. A coating might need to withstand a dielectric test voltage of 2 x Operating Voltage + 1000V.
• Component Geometry and Density: Sharp edges on components, leads, and solder joints require adequate coverage to prevent thin spots. Coating tends to pull away from sharp edges, so a slightly thicker overall application might be needed to ensure minimum thickness (e.g., aim for at least 50% of flat surface thickness on edges, as per IPC-HDBK-830). Very dense boards with tall components can create "shadowing" effects, making uniform coverage challenging.
• Coating Material Properties: Different materials have inherently different dielectric strengths (e.g., acrylics ~14-16 kV/mm or 350-400 V/mil, silicones ~20-30 kV/mm or 500-800 V/mil, Parylene C ~220 kV/mm or 5600 V/mil) and barrier properties per unit of thickness. The choice of material will influence the required thickness for a given level of protection.

Always consult the specific coating manufacturer's datasheet for detailed application instructions and properties, and cross-reference with relevant industry standards like IPC-CC-830C and IPC-A-610. Verification of the applied thickness using appropriate measurement techniques (as discussed in the inspection section) is vital to ensure that the coating meets these critical performance requirements.

---

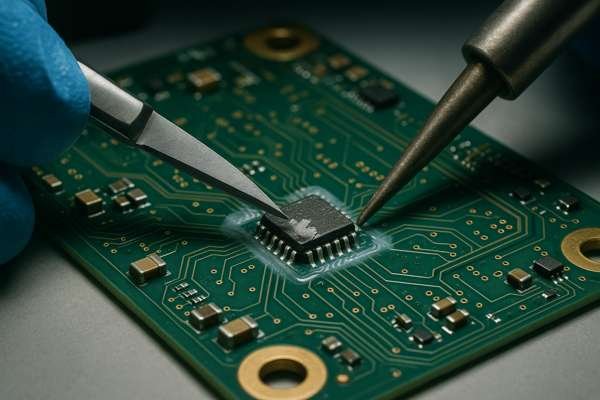

How to rework a conformally coated PCB?

So, you have a conformally coated PCB that needs a component replaced or a circuit modification. That protective coating now seems like a barrier to your rework efforts. But don't despair, with the right techniques, it's definitely achievable.

Reworking conformally coated PCBs involves careful, localized removal of the coating, performing the necessary component replacement or repair, cleaning the area, and then reapplying a compatible coating to restore protection. The success hinges on choosing the correct removal method for the specific coating type and ensuring meticulous process control.

Throughout my career, from complex security systems at Honeywell (like the Tuxedo Keypad which sometimes needed field return rework and component upgrades) to life-critical medical devices at Smiths Medical, the need to rework conformally coated boards was a frequent engineering reality. Sometimes it was a component failure during Design Validation Testing (DVT), other times a post-launch upgrade or repair. The key was always a methodical, controlled approach, especially since improper rework could easily damage an expensive assembly or compromise its long-term reliability and regulatory compliance. The IPC-7711/7721 ("Rework, Modification and Repair of Electronic Assemblies") standard is an excellent, indispensable resource that provides detailed, step-by-step procedures for many rework operations, including those involving conformal coatings (see Section 10 of IPC-7711/7721 for coating removal/replacement).

Here’s a general process flow, drawing on those industry best practices, for reworking conformally coated PCBs:

1. Assessment and Preparation

Before diving in, proper planning is essential.

• Clearly identify the component(s) or circuit area needing rework. Document the location and the reason for rework.
• Determine the type of conformal coating applied. This is the most crucial piece of information as it dictates the removal method (refer to the main section on removal techniques). If the coating type is unknown, small-scale testing of various removal methods on an inconspicuous, non-critical area of the board might be necessary.
• Gather all necessary tools and materials: soldering/desoldering equipment, coating removal tools/chemicals, cleaning supplies, replacement components, new coating material, and importantly, appropriate Personal Protective Equipment (PPE) such as safety glasses, gloves, and ventilation/fume extraction systems.
• Ensure an ESD-safe workstation and follow ESD precautions throughout the entire process.
• If the assembly has been exposed to humidity or if moisture absorption is a concern (especially for certain coating types or PCB materials), consider a pre-bake (e.g., 2-4 hours at 70-80°C, or per component/board specifications) to drive off moisture before applying localized heat for component removal.

2. Localized Coating Removal

This is often the most delicate step. The goal is to remove the coating only from the immediate area where work is needed (typically the component body and its solder terminals plus a small margin, e.g., 1-3 mm around the component or solder joints), minimizing impact on the surrounding coating and components.

• Select the most appropriate removal method from those detailed earlier (Chemical, Thermal, Mechanical, Micro-Abrasive, Laser) based on coating type, component sensitivity, board complexity, and available equipment.
• Carefully mask adjacent areas if using broadcast methods like micro-abrasion or potent chemical strippers to protect sensitive components or prevent widespread coating damage. Kapton® tape is often used for masking.
• My Experience: For the Tuxedo keypad, which often used an acrylic coating, localized chemical stripping with a gel solvent and careful scraping with a wooden or plastic stick was often sufficient for replacing through-hole components. For more sensitive SMT work or tougher coatings, precise micro-abrasion or thermal methods (with a fine hot air nozzle and shielding) were preferred to prevent collateral damage.

3. Component Removal and Replacement

With the coating cleared from the target solder joints:

• Use standard desoldering techniques suitable for the component type (e.g., soldering iron with solder wick or vacuum pump for discrete components; hot air rework station for SMT components like QFPs, SOICs; specialized BGA rework stations for BGAs). Follow procedures outlined in IPC-7711/7721⁹ for the specific component package style.
• Carefully clean the pads to remove all old solder and any remaining coating residues. Use flux and solder wick, or a vacuum desoldering tool. Inspect pads for any damage (lifts, tears) and repair if necessary according to IPC guidelines.
• Place and solder the new component according to standard procedures (e.g., per IPC J-STD-001¹⁰ "Requirements for Soldered Electrical and Electronic Assemblies" and IPC-A-610 acceptance criteria). Use appropriate flux type and solder alloy (ensure compatibility with original assembly if lead-free/leaded status is mixed).

4. Cleaning the Reworked Area

Thorough cleaning after component replacement is critical.

• Meticulously clean the reworked area to remove any flux residues, loose coating particles, solder balls, and other contaminants. Isopropyl alcohol (IPA) or specialized electronics cleaning solvents are commonly used. Refer to IPC-CH-65B ("Guidelines for Cleaning of Printed Boards and Assemblies") for detailed cleaning guidance.
• Ensure no "white residue" (often from interaction between certain flux types and cleaning agents, or incomplete cleaning) remains, as this can cause corrosion or interfere with new coating adhesion.
• Allow the area to dry completely. A final rinse with fresh solvent may be beneficial.

5. Inspection of Rework

Before recoating, verify the quality of the component replacement.

• Visually inspect the rework: check solder joint quality (proper wetting, correct fillet size, no bridges or solder balls) per IPC-A-610 Class 2 or 3 criteria, as required for the product.
• Ensure no damage to adjacent components or the PCB substrate has occurred.
• Verify the area is spotlessly clean.
• Electrical continuity tests or in-circuit tests may be appropriate at this stage for critical repairs.

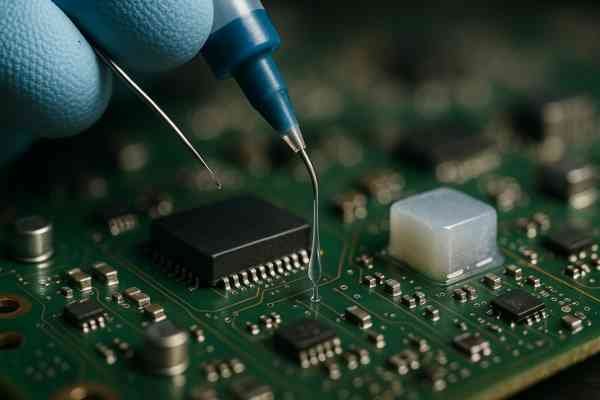

6. Reapplication of Conformal Coating (Touch-up)

Restoring the protective barrier is the final step in the repair.

• Carefully mask any areas that should not be recoated (e.g., connector pins, test points, heat sinks that need to remain bare).
• Select a coating material that is compatible with the original coating (if the original coating remains elsewhere on the board). Ideally, use the exact same coating type and manufacturer. If compatibility is uncertain, full stripping of the original coating from the entire board might be a better (though more involved) option, or careful testing of inter-coat adhesion on a test piece is needed. IPC-CC-830C Appendix A offers some general notes on coating compatibility.
• Apply the new coating to the reworked area using a suitable method for touch-up. Common methods include:
  • Brushing: Using a fine artist's brush for small, precise areas.
  • Syringe Dispensing: For controlled application of small volumes.
  • Aerosol Spray Can: For slightly larger areas, often with masking.
• Ensure the new coating overlaps slightly (e.g., 1-3 mm) with the existing intact coating to create a good, continuous seal.
• Aim for the original specified thickness. This can be challenging for manual touch-up; applying multiple thin layers, allowing flash-off time between them, is often better than trying to apply one thick layer which might run or cure improperly.
• Allow the newly applied coating to cure fully according to the manufacturer’s instructions (air dry, heat cure, UV cure). Ensure cure conditions (temperature, time, UV intensity) do not adversely affect the assembly or previously qualified components.

7. Final Inspection and Testing

The job isn't done until the recoated area is verified.

• Visually inspect the recoated area for proper coverage, uniform thickness (if measurable locally), good adhesion to the board and surrounding coating, and absence of defects (bubbles, dewetting, orange peel, etc.). UV inspection is very helpful here if the touch-up coating contains a UV tracer.
• Perform any necessary functional tests on the assembly to confirm the repair was successful and the unit is operating correctly according to its specifications. Sometimes a localized dielectric withstanding voltage test might be performed across the reworked area if it involves high-voltage circuitry.

Reworking conformally coated boards is a skilled operation that requires patience, the right tools, and meticulous attention to detail. As a hardware leader, I always emphasized that a rushed or sloppy rework job is often worse than no rework at all, as it can introduce new failure modes. Taking the time to do it right, following established industry procedures like those in IPC-7711/7721, ensures the continued reliability and performance of the product.

---

Conclusion

Effectively removing, inspecting, and reworking conformal coatings is vital for product reliability, serviceability, and overall quality in high-performance electronics. Understanding the diverse materials, mastering the precise application and removal methods, and adhering to key industry standards like IPC-A-610, IPC-CC-830C, and IPC-7711/7721 empowers us as engineers to deliver robust and dependable products.

---
