Struggling with PCB reliability? Surface finish choices impact solderability and lifespan. The wrong one definitely causes headaches down the line.
PCB surface finishes include HASL, ENIG, OSP, Immersion Silver, Immersion Tin, ENEPIG, and Hard Gold. Each offers unique benefits for different applications, affecting cost, solderability, shelf life, and lead-free compliance, making the choice critical for product success.
Choosing the right PCB surface finish is a really important decision in product development. It's not just a cosmetic layer; it directly impacts how well components can be soldered to the board and, ultimately, how reliable and long-lasting your product will be. I've seen projects delayed and costs escalate simply because the surface finish wasn't a good match for the design or the manufacturing process. So, let's explore the common types you'll encounter and figure out which one might be best for your next project.

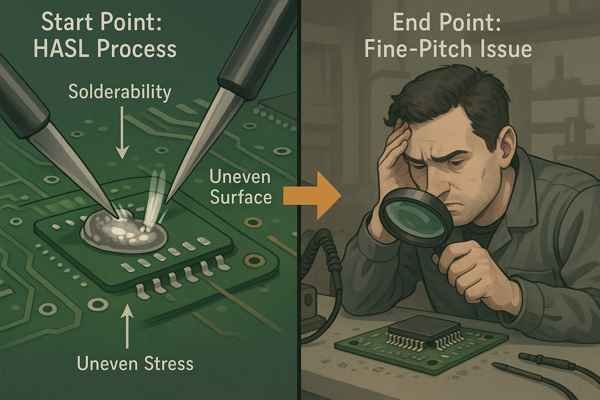

What are the Pros and Cons of HASL (Hot Air Solder Leveling) Surface Finish?
Need a low-cost finish that gets the job done for many applications? HASL is a workhorse, but its uneven surface can be a real pain for modern fine-pitch components.
HASL offers low cost and traditionally good solderability, making it a popular choice. However, it typically results in an uneven surface, is not ideal for components with pitches less than 0.5mm, and the process involves significant thermal stress on the PCB.
HASL has been around for a long time, and for good reason. It's generally the cheapest option and provides a very solderable surface. But, as with anything in engineering, there are trade-offs.
A Closer Look at HASL
The HASL process involves dipping the PCB into a molten solder bath (traditionally tin-lead, but now more commonly lead-free alloys like SAC305), and then high-pressure hot air is blasted across the surface through "air knives" to remove excess solder and level what remains.
| Feature | Detail | Source/Note |
|---|---|---|
| Overall Assessment | Economical, good general-purpose finish, but with limitations | Industry Experience |
| Advantages | Low Cost, Good Solderability, Easy Visual Inspection, Reworkable | Common Knowledge |
| Disadvantages | Uneven Surface, Thermal Stress, Not for Fine Pitch (<0.5mm), Bridging Risk | Common Knowledge |
| Typical Solder Thickness | 1-40 µm (highly variable) | General; IPC-6012 for acceptability |
| Suitability for Fine Pitch | Generally not recommended for <0.5mm pitch | Industry Best Practice |
| Lead-Free HASL Process Temp | Approx. 250-270°C | Common Knowledge |
For many through-hole and larger SMT component designs, HASL, especially lead-free HASL, is still a viable and cost-effective choice. But if you're pushing the boundaries of component density with fine-pitch parts, where coplanarity is critical, you'll likely need to look at other, flatter options. I've seen the surface variability of HASL cause issues with paste printing and component placement for 0.5mm pitch QFPs, leading to rework.

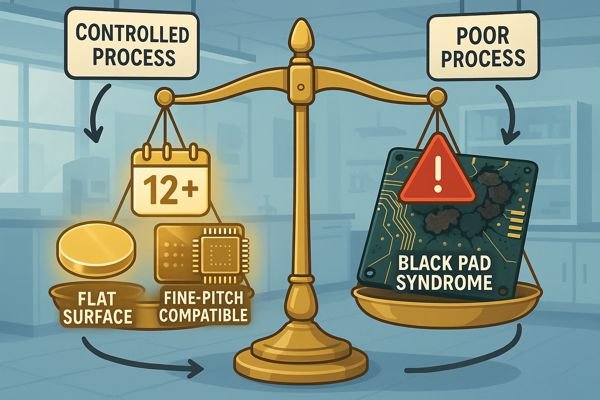

What are the Pros and Cons of ENIG (Electroless Nickel Immersion Gold) Surface Finish?
Want a flat surface, good shelf life, and suitability for fine-pitch components? ENIG is a very popular choice, but the dreaded "black pad" syndrome can be a hidden and costly risk.
ENIG provides an excellent flat surface, good solderability, and a long shelf life (typically over 12 months). Its main potential disadvantage is "black pad," a nickel corrosion issue that can lead to catastrophic solder joint failures if the plating process is not well-controlled.
I've specified ENIG on countless designs, especially when dealing with BGAs or fine-pitch QFPs. That flat surface is a lifesaver for ensuring reliable solder joints on these tiny components. The long shelf life is also a huge plus, especially when boards might sit in inventory for a while.
A Closer Look at ENIG
ENIG is a two-layer metallic coating. First, an electroless nickel layer is deposited onto the copper. Then, a very thin layer of immersion gold is deposited over the nickel. The gold primarily protects the nickel from oxidation.
| Feature | Detail | Source/Note |
|---|---|---|
| Overall Assessment | Excellent for fine pitch, good shelf life, but black pad is a risk. | Industry Experience |
| Advantages | Flat Surface, Good Solderability, Long Shelf Life (>12 months), Al Wire Bondable | Common Knowledge |
| Disadvantages | "Black Pad" Risk, Higher Cost than HASL/OSP, Complex Process | Common Knowledge |
| Nickel (Ni) Thickness | 3-6 µm (120-240 µin) | IPC-4552A |
| Immersion Gold (Au) Thickness | 0.05-0.1 µm (2-4 µin) minimum, typically 0.05-0.15 µm | IPC-4552A (target often 0.07-0.12µm) |
| Key Concern | Black Pad (Nickel hyper-corrosion) | Mitigated by good process control |
For more discussion about black pad, please refer to my article: What Is a Black Pad in an Immersion Gold PCB?
Despite the black pad risk (which, as per IPC-4552A, is significantly mitigated by fabricators with well-controlled plating lines), ENIG remains my go-to for many moderate to high-complexity designs due to its superior planarity and reliable performance with fine-pitch components. I always ensure my fab house has specific controls for their ENIG process.

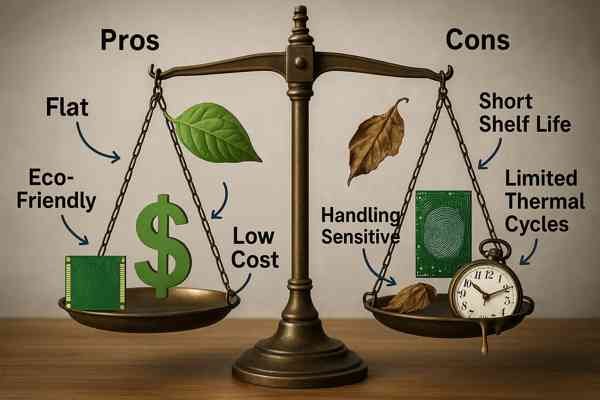

What are the Pros and Cons of OSP (Organic Solderability Preservative) Surface Finish?
Seeking an eco-friendly, flat, and low-cost finish for your PCBs? OSP is attractive, but its limited shelf life, sensitivity to handling, and restrictions on thermal cycles can be challenging.
OSP offers a very flat surface, is lead-free, and generally the lowest cost metallic alternative. However, it has a relatively short shelf life (typically 6-12 months), is sensitive to contamination from handling, and usually allows for only a limited number of reflow cycles (often 2-3).
OSP is an interesting one. It’s essentially a very thin, transparent organic coating applied to the copper pads to protect them from oxidation before soldering. When I've needed a really flat surface for things like RF shields that make direct contact, or for cost-sensitive consumer electronics with straightforward assembly, OSP has been a contender.
A Closer Look at OSP
The OSP coating is typically an azole-based compound that selectively bonds with copper. During soldering, the heat volatilizes the OSP, allowing solder to wet the copper.
| Feature | Detail | Source/Note |
|---|---|---|
| Overall Assessment | Cost-effective, flat, eco-friendly, but with handling/process limits. | Industry Experience |
| Advantages | Excellent Flatness, Low Cost, Simple Process, Environmentally Friendly | Common Knowledge |
| Disadvantages | Short Shelf Life (6-12 mo.), Handling Sensitive, Limited Thermal Cycles (2-3x), Not for ICT, Inspection Hard | Common Knowledge |
| Typical Thickness | 0.2-0.5 µm | Industry general knowledge |
| Shelf Life | 6-12 months (variable by specific OSP chemistry & storage) | Manufacturer datasheets |
OSP is a good choice for high-volume, cost-sensitive products with a well-controlled, quick-turn assembly process. Once, a batch of OSP boards handled carelessly in assembly led to terrible soldering yields because of skin oils. You need to be aware of its limitations, especially regarding handling and the number of soldering cycles.

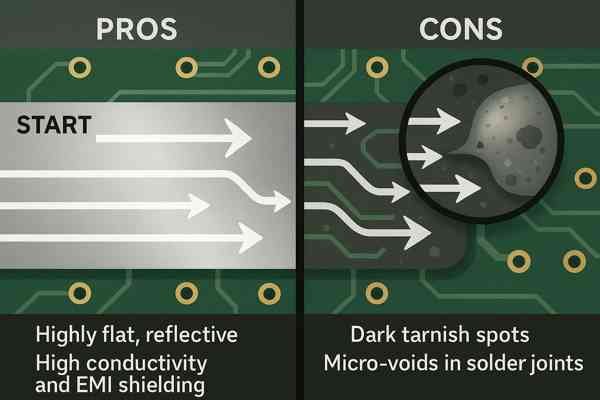

What are the Pros and Cons of Immersion Silver (ImAg) Surface Finish?
Need a flat, highly conductive finish, perhaps for high-speed signals or EMI shielding? Immersion Silver is a strong candidate, but potential issues like tarnish and micro-voids in solder joints need careful consideration.
Immersion Silver offers excellent flatness, good initial solderability, and is a cost-effective choice for high-frequency applications due to its conductivity. Its main cons include susceptibility to tarnishing if not handled/packaged correctly, and a potential for micro-voids in solder joints.
I've turned to Immersion Silver (ImAg) a few times, particularly when dealing with RF designs where signal integrity at high frequencies was paramount. The pure silver surface has excellent conductivity. It also provides a very flat surface, which is great for fine-pitch components.
A Closer Look at Immersion Silver
ImAg is a thin layer of silver deposited directly onto the copper via an electroless chemical displacement reaction.
| Feature | Detail | Source/Note |
|---|---|---|
| Overall Assessment | Good for RF, flat, but tarnish is a major handling/storage concern. | Industry Experience |
| Advantages | Excellent Flatness, Good Solderability, High Conductivity (good for RF), Mid-Range Cost | Common Knowledge |
| Disadvantages | Tarnishes Easily, Micro-voids Potential, Electromigration Risk, Handling Sensitive | Common Knowledge |
| Thickness | 0.1-0.3 µm (typically, can be up to 0.5 µm) | IPC-4553A |
| Shelf Life | 6-12 months (highly dependent on anti-tarnish packaging) | Manufacturer datasheets |
If you can manage the handling and packaging requirements (e.g., sulfur-free paper, sealed bags) to prevent tarnish, ImAg can be a great choice for its electrical performance and flatness. I remember one instance where boards arrived looking perfect, but after a few weeks in a less-than-ideal storage environment without proper anti-tarnish measures, tarnish became visible, impacting solderability.

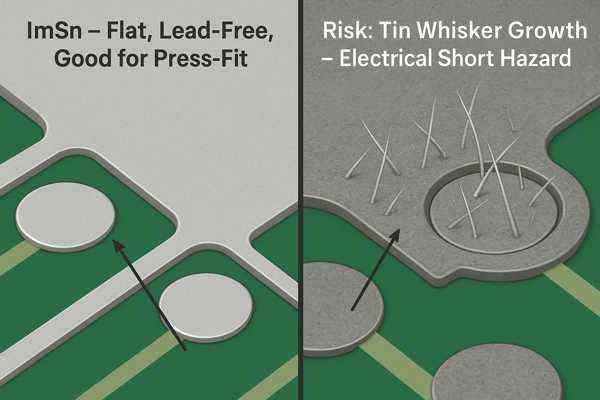

What are the Pros and Cons of Immersion Tin (ImSn) Surface Finish?
Looking for a flat, lead-free option that's also good for press-fit connector applications? Immersion Tin (ImSn) works well, but the significant risk of tin whisker growth is a major drawback that can cause long-term reliability nightmares.
Immersion Tin provides a flat, lead-free surface that is suitable for press-fit connectors and offers good initial solderability. Its primary and most significant disadvantage is the propensity for tin whisker growth, which can lead to electrical shorts over time.
Immersion Tin is one of those finishes I approach with extreme caution. While it offers some benefits like a flat surface and being good for press-fit pins, the risk of tin whiskers is a serious concern for many applications.
A Closer Look at Immersion Tin
ImSn involves depositing a thin layer of tin directly onto the copper.
| Feature | Detail | Source/Note |
|---|---|---|
| Overall Assessment | Flat, good for press-fit, but tin whisker risk is a major deterrent. | Industry Experience |
| Advantages | Excellent Flatness, Good Solderability, Good for Press-Fit, Lead-Free, Relatively Low Cost | Common Knowledge |
| Disadvantages | TIN WHISKERS, IMC Growth (limits shelf life ~6 mo.), Limited Thermal Cycles, Tarnishing | JEDEC JESD201A (Whiskers) |
| Thickness | 0.7-1.2 µm (typically aiming for ≥1.0 µm for solderability) | IPC-4554 |
| Key Concern | Tin Whisker Growth | Significant reliability risk |
Due to the tin whisker risk, I tend to avoid ImSn unless there's a very specific reason, like a press-fit application where the customer has thoroughly evaluated and accepted the risks according to standards like JESD22A121A. For general soldering, there are usually safer alternatives.
What are the Pros and Cons of ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) Surface Finish?
Want the "universal" finish that excels in demanding applications, including wire bonding and high reliability? ENEPIG is incredibly robust and versatile, but its higher cost can be a significant factor in your decision.
ENEPIG offers excellent solderability, superior gold and aluminum wire bondability, and a very long shelf life (over 12 months), effectively preventing the "black pad" issues seen with ENIG. Its primary con is its higher cost compared to finishes like ENIG or OSP.
ENEPIG is often called the "universal finish" because it seems to do everything well. The added layer of electroless palladium between the nickel and gold is key. When I'm working on very high-reliability products, like medical devices or critical aerospace components where failure is not an option, ENEPIG is a top contender.
A Closer Look at ENEPIG
The structure of ENEPIG adds a palladium layer to the ENIG stack.
| Feature | Detail | Source/Note |
|---|---|---|
| Overall Assessment | Premium "universal" finish, excellent for high-rel and mixed assembly. | Industry Experience |
| Advantages | Eliminates Black Pad, Excellent Solderability, Superb Au & Al Wire Bondability, Very Long Shelf Life (>12 mo.), Very Flat | Common Knowledge |
| Disadvantages | Higher Cost (most expensive common finish), More Complex Process | Common Knowledge |
| Nickel (Ni) Thickness | 3-5 µm (120-200 µin) | IPC-4556 |
| Electroless Palladium (Pd) Thickness | 0.05-0.3 µm (2-12 µin) - (target often 0.1-0.15 µm) | IPC-4556 |
| Immersion Gold (Au) Thickness | 0.03-0.05 µm (1-2 µin) - (target often >0.038µm) | IPC-4556 |
For applications where reliability is paramount and multiple assembly processes like soldering and wire bonding are required on the same pads, ENEPIG is often the best technical choice, if the budget allows. I've seen it solve some tricky assembly challenges where other finishes fell short, particularly with fine-pitch gold wire bonding.

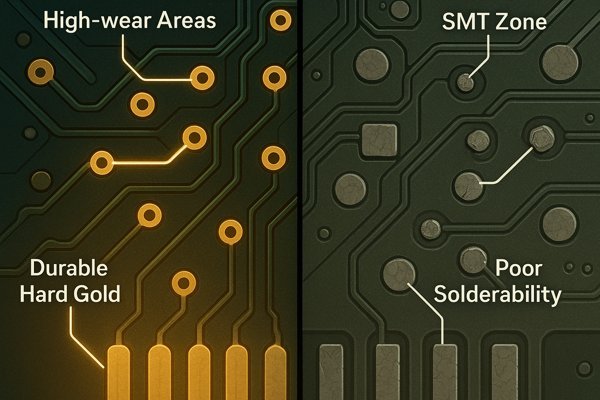

What are the Pros and Cons of Hard Gold Plating for PCBs?
Need an extremely durable surface for high-wear areas like edge connectors or contact pads? Hard Gold plating is incredibly tough, but its high cost and poor solderability for SMT components generally limit its use to specific applications.
Hard Gold (electrolytic nickel gold) is exceptionally durable and ideal for high-wear applications such as edge card fingers or keypad contacts. However, it is very expensive and not typically recommended for soldering SMT components due to the risk of gold embrittlement.
When I design boards with edge connectors that will see a lot of insertion/removal cycles, like a PCI Express card, Hard Gold is the finish I specify for those fingers. The "hard" part comes from alloying the gold with cobalt or nickel.
A Closer Look at Hard Gold
Hard Gold plating is an electrolytic process, resulting in a thicker, more durable gold layer.
| Feature | Detail | Source/Note |
|---|---|---|
| Overall Assessment | Extremely durable for wear applications, but costly and not for soldering. | Industry Experience |
| Advantages | Exceptional Durability & Wear Resistance, Excellent Corrosion Resistance, Good Electrical Contact | Common Knowledge |
| Disadvantages | Very Expensive, Poor Solderability for SMT (Gold Embrittlement Risk >3% Au in joint per J-STD-001), Requires Bussing | Common Knowledge |
| Nickel Underplate Thickness | Typically 2.5-5 µm (100-200 µin) | Industry Standard |
| Hard Gold Thickness | 0.76-1.27 µm (30-50 µin) for edge fingers; can be thicker | Based on application requirements |
| Hardness (Knoop) | Typically 130-200 HK25 | Material Property |
Hard Gold is a specialized finish. You use it where you absolutely need that wear resistance. For general soldering on the same board, you'd need a selective finishing process. The cost of hard gold means I only specify it when absolutely necessary for mechanical durability.

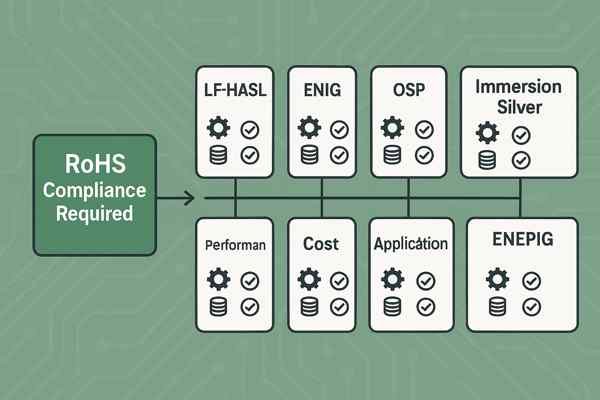

What are the Common Lead-Free PCB Surface Finish Options?
Meeting RoHS requirements is a must for most modern electronics. Lead-free surface finishes are essential, but it's important to understand that each option comes with different performance characteristics, process considerations, and cost implications.
Common lead-free PCB surface finishes include Lead-Free HASL (LF-HASL), ENIG, OSP, Immersion Silver, Immersion Tin, and ENEPIG. The choice among them depends heavily on the specific application, performance needs, expected assembly processes, and overall product cost, all while ensuring compliance with regulations like RoHS.
The shift to lead-free manufacturing (RoHS directive 2011/65/EU) has made selecting the right surface finish even more critical due to higher processing temperatures (217-227°C for SAC alloys).
A Closer Look at Lead-Free Finishes
Here's a comparative summary:
| Finish | Flatness | Relative Cost | Solderability | Key Lead-Free Pros | Key Lead-Free Cons |
|---|---|---|---|---|---|
| LF-HASL | Poor | Low | Good | Economical, robust joints | Uneven surface, thermal stress on PCB |
| ENIG | Excellent | Medium-High | Good | Flat, good for fine pitch, good shelf life | Black pad risk (mitigated), cost |
| OSP | Excellent | Low | Good (Fresh) | Eco-friendly, very flat | Handling sensitive, limited thermal cycles, short shelf life |
| Immersion Ag | Excellent | Medium | Good | Good for RF, flat | Tarnish, micro-voids, electromigration |
| Immersion Sn | Excellent | Medium-Low | Good | Flat, good for press-fit | Tin Whiskers1, IMC growth limits shelf life |
| ENEPIG | Excellent | High | Excellent | Universal, no black pad, great for bonding & high-rel | Highest cost |
When selecting a lead-free finish, I always consider the entire assembly process and the higher reflow temperatures. For example, OSP might struggle with multiple high-temperature lead-free reflows more than ENIG or ENEPIG would.

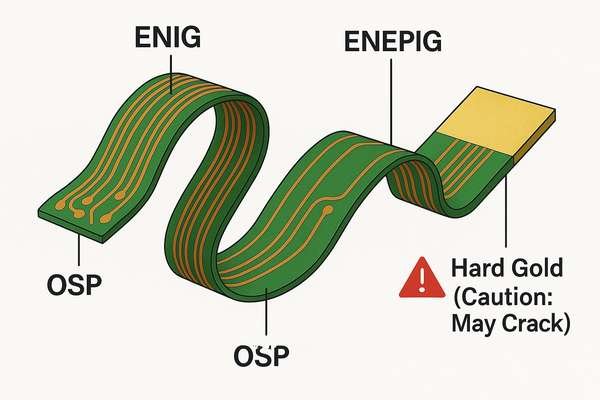

Are there Specific Surface Finish Considerations for Flexible PCBs?
Designing flexible circuits brings its own set of challenges. The chosen surface finish must not only provide good solderability but also be able to withstand bending and flexing, as not all finishes are equally suitable for dynamic applications.
For flexible PCBs (FPCs), surface finishes like ENIG, ENEPIG, and sometimes specially formulated OSPs are preferred due to their thinness, uniformity, and ability to handle some degree of flexing. Hard gold can be used for contact areas but may crack under repeated dynamic flexing if not implemented carefully.
Flexible PCBs, typically using polyimide (PI) and Rolled-Annealed (RA) copper for dynamic applications, require finishes that don't compromise their mechanical properties. IPC-6013 provides detailed guidance.
A Closer Look at Finishes for Flexible PCBs
| Finish | Suitability for Flex | Typical Use on Flex | Key Considerations for Flex |
|---|---|---|---|
| ENIG | Good (with controlled Ni thickness) | General soldering, fine pitch | Thinner Ni (e.g., 1-3 µm) often used. Mid-phos nickel preferred for ductility. Risk of cracking if Ni too thick/brittle. |
| ENEPIG | Very Good | High reliability, wire bonding, fine pitch | Excellent ductility of thin Pd & Au layers over controlled Ni. Robust. |
| OSP | Fair (mainly for static bends) | Cost-sensitive, limited/static flex | Very thin, adds no stiffness. Durability under dynamic flex can be a concern. Some newer OSPs are better. |
| Hard Gold | Selective Use Only (contacts) | ZIF connector fingers, contact pads | Not for areas with significant dynamic flexing (can crack). Applied on supported areas. |
| Immersion Ag/Sn | Less Common | Specific niche applications | Concerns over tarnish/migration (ImAg) or whiskers/IMC (ImSn) amplified by flex stress. |
Adhesion of the finish to the copper and the flexible substrate, especially under bending stress, is crucial. I've seen ENIG work well on flex circuits that are bent to fit into an enclosure, but for truly dynamic applications (repeated bending), careful design and material selection, including the finish, are paramount.

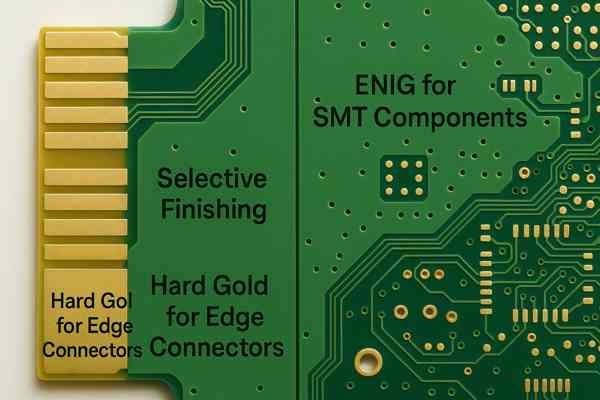

Can Different Surface Finishes Be Used on the Same PCB (Selective Finishing)?
What if you need the durability of hard gold for edge connectors but the solderability of ENIG for your SMT components, all on a single board? Selective finishing makes this possible, but it inevitably adds complexity and cost to the PCB fabrication process.
Yes, different surface finishes can be strategically applied to specific areas of the same PCB using various selective finishing techniques. This allows for optimizing different sections of the board for their intended functions—like soldering, wire bonding, or wear resistance—but it does increase manufacturing complexity and cost.
I've had to specify selective finishing on several occasions, especially for products that have both SMT components and card-edge fingers. It allows you to use the best material for each job on one board.
A Closer Look at Selective Finishing
This involves masking and multiple plating steps.
| Combination Example | Area 1 (Finish 1) | Area 2 (Finish 2) | Primary Reason / Application |
|---|---|---|---|
| Hard Gold + ENIG | Edge Fingers (Hard Gold) | SMT/BGA Pads (ENIG) | Combines wear resistance for connectors with solderability for components. |
| OSP + ENIG/ENEPIG | General Solder Pads (OSP) | BGA/Wire Bond Pads (ENIG/ENEPIG) | Cost optimization for general areas, high performance for critical zones. |
| ENEPIG + Hard Gold | Wire Bond/SMT Pads (ENEPIG) | Contact Points (Hard Gold) | High-reliability bonding/soldering plus durable contact surfaces. |
| Immersion Silver + OSP | RF Pads (Immersion Silver) | General Solder Pads (OSP) | Optimizes RF performance locally while managing cost elsewhere. |
The main drawback of selective finishing is the increased manufacturing complexity and cost. Each additional masking and plating step adds to the processing time and potential for yield loss. When I consider it, I always have a detailed discussion with my PCB fabricator about their capabilities and the cost implications early in the design phase. Clear documentation on the fabrication drawing is absolutely essential.
Conclusion
Choosing the right PCB surface finish isn't a minor detail; it's a critical decision. It involves carefully balancing cost, the manufacturing process, component types, performance requirements, and long-term reliability. Understanding these common options helps ensure your electronic products are both reliable and durable.
-
