Why is tooling so fundamentally important for PCB manufacturing?

Struggling with production delays or inconsistent quality? Your PCB tooling might be the overlooked cause, leading to costly rework and missed deadlines. Understanding its role is key.
Tooling is the critical bridge turning your PCB design into a physical reality accurately and repeatedly. It includes fixtures, jigs, templates, and data ensuring manufacturing steps adhere precisely to specifications, guaranteeing quality and yield.

Getting tooling right is not just a minor detail; it's foundational to successful PCB production. Without proper tooling, achieving the precision needed for modern electronics is practically impossible, especially at scale. Let's break down what tooling involves and why each aspect matters so much in my experience.

What exactly is tooling in PCB manufacturing?

Ever felt lost when manufacturers mention "tooling"? This lack of clarity can lead to misunderstandings and errors during production setup, causing unexpected problems down the line.

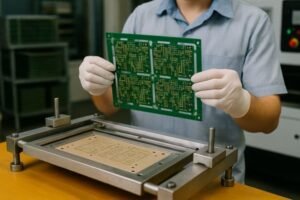

In PCB manufacturing, tooling refers to all the custom fixtures, jigs, templates, digital data (like drill files), and stencils created specifically for your board design to ensure precise alignment, drilling, assembly, and testing.

Tooling acts like a precise guide system throughout the manufacturing floor. Think of it as the physical and digital framework that forces the process to stick to your design rules. It's not just about holding the board; it's about ensuring every single step happens exactly where it should, every time.

Physical vs. Digital Tooling

Tooling isn't just physical objects. It has two key components:

1. Physical Tooling: These are the tangible items created for your specific PCB project.
   • Drill Jigs/Fixtures: Hold the PCB panels securely for accurate drilling.
   • Lamination Plates/Fixtures: Ensure correct layer alignment and pressure during pressing.
   • Solder Paste Stencils: Control the precise deposition of solder paste for SMT components.
   • Assembly Pallets/Fixtures: Hold boards during component placement and soldering (especially for wave or selective soldering).
   • Test Fixtures (e.g., Bed-of-Nails): Provide reliable connections for automated testing.
   • Depaneling Fixtures: Hold panels securely during depaneling (routing or V-scoring).
2. Digital Tooling: This is the manufacturing data derived from your design files.
   • Gerber/ODB++ Data: Used to create photomasks for imaging circuit patterns.
   • Drill Files (Excellon/NC Drill): Programs that control the CNC drilling machines.
   • Placement Data (Centroid Files): Guides automated pick-and-place machines.
   • Netlists: Used for electrical testing (comparing manufactured connections against the design intent).

From my years managing complex projects, I've seen how robust tooling prevents countless errors. It’s the difference between a smooth production run and a troubleshooting nightmare. It ensures manufacturability and repeatability.

What specific functions does tooling serve in the process?

Are you unsure exactly where tooling fits into the PCB production line? This uncertainty can make it hard to appreciate its impact on overall quality and efficiency.
Tooling is essential for multiple critical manufacturing stages: aligning layers during imaging and lamination, precisely guiding drills, accurately applying solder paste, positioning components during assembly, and enabling reliable electrical testing.

Tooling isn't just one thing; it's a set of specialized aids used throughout the entire PCB fabrication and assembly process. Its primary goal is always precision and consistency. Let's look at where it plays a crucial role:

Key Applications of Tooling

Each piece of tooling is custom-made based on your specific design files. It translates the digital design into repeatable physical actions on the factory floor. Good tooling minimizes variations, improves yields, and ultimately lowers costs.

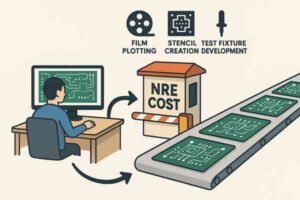

What is the tooling charge I see on my PCB quote?

Surprised by a "tooling charge" on your PCB invoice? Not understanding this cost can disrupt project budgets and cause friction with your manufacturing partner.
The tooling charge is typically a one-time, non-recurring engineering (NRE) cost. It covers the expense of creating the custom fixtures, stencils, test setups, and preparing the manufacturing data needed specifically for your PCB design.

Think of the tooling charge as the setup fee for manufacturing your specific board design. Since every PCB design is unique, the manufacturer needs to create dedicated tools to produce it accurately. This cost isn't part of the per-board price; it's an initial investment to get the production line ready for your particular design.

Breakdown of Tooling Costs

What exactly are you paying for? The tooling charge typically covers:

• Data Preparation: Engineers review your Gerbers, drill files, and BOM, preparing them for manufacture. This includes panelization planning and creating manufacturing-specific data files.
• Photomask Generation¹: Creating the high-resolution films used to image the circuit layers.
• Drill Program Creation: Generating the NC drill files that control the drilling machines.
• Fixture Fabrication: Building any necessary physical jigs or fixtures for processes like drilling, lamination, assembly, or testing.
• SMT Stencil Creation²: Laser cutting the stainless steel stencil used for solder paste printing (if assembly is included).
• Test Fixture Setup: Designing and building a bed-of-nails fixture or programming a flying probe tester based on your design's test points and netlist.

This charge applies to new designs and usually also to significant revisions of existing designs that change layer count, board outline, hole positions, or require new test points. While it's a one-time cost per design version, it's essential for ensuring the manufacturer can produce your boards correctly and efficiently. For high-volume runs, this cost gets amortized and becomes less significant per board, but for prototypes, it can be a noticeable part of the total expense.

What are PCB tooling holes?

Have you ever noticed small, unplated holes near the edges of a PCB panel? Ignoring their purpose can cause major alignment issues during automated manufacturing processes.
PCB tooling holes are non-plated holes, typically located on the edges of a PCB panel or sometimes within the board itself. Their primary function is precise mechanical alignment and registration during various manufacturing and assembly steps.

Tooling holes are critical for automated equipment. They act as physical anchor points that machines use to accurately position the PCB panel for operations like drilling, routing, imaging, component placement, and testing. Think of them as the reference points that ensure everything else lines up perfectly.

Key Characteristics and Functions

• Purpose: Primarily for mechanical registration and alignment in manufacturing machines.
• Location: Often placed symmetrically on the panel rails (the waste material around the boards) or sometimes within the usable board area if space allows and design permits. Common practice involves 3 holes for unambiguous orientation.
• Plating: Usually Non-Plated Through Holes (NPTH). Plating isn't needed as they aren't electrical connections and non-plated offers a more precise diameter.
• Size: Typically standardized diameters (e.g., 3mm or 4mm) to match the pins on manufacturing equipment. Consistency is key.
• Tolerance: Require tight positional and diameter tolerances for accurate alignment.

Without accurate tooling holes, automated processes would struggle. Solder paste might be misaligned, components placed incorrectly, and test probes could miss their targets. They are fundamental for achieving the high precision required in modern PCB fabrication and assembly. They work alongside optical targets called fiducials, but provide the primary mechanical lock-in.

What are PCB mounting holes?

Confused about those larger holes often found inside the board outline? These aren't for manufacturing alignment; they serve a completely different, but equally important, purpose in the final product.
PCB mounting holes are designed specifically to mechanically secure the finished PCB assembly into an enclosure, chassis, or onto another board using hardware like screws, bolts, or standoffs.

Mounting holes are all about the final integration of your product. They ensure the PCB stays securely in place, preventing movement or vibration that could damage components or connections. They are a key part of the mechanical design of the overall electronic device.

Features and Considerations

• Purpose: Mechanical fixation of the PCB in its final operating environment. Sometimes also used for grounding connections.
• Location: Placed within the main board outline, strategically positioned for stable mounting.
• Plating: Can be Plated Through Holes (PTH) or Non-Plated Through Holes (NPTH).
  • PTH Mounting Holes: Often preferred as the plating strengthens the hole edge, prevents delamination under stress, and can be easily connected to ground planes for chassis grounding.
  • NPTH Mounting Holes: Simpler to make, used when no electrical connection is needed and mechanical stress is lower.
• Size: Diameter depends on the mounting hardware (e.g., M3 screw requires a hole slightly larger than 3mm). Clearances around the hole for screw heads or nuts must also be considered in the layout.
• Keep-out Areas: Designers usually define copper keep-out areas around mounting holes (especially non-grounded ones) to prevent accidental short circuits with mounting hardware.

Properly designed mounting holes are crucial for the product's mechanical integrity and long-term reliability. Choosing the right type, size, and location is an important step in the PCB layout process.

What is the difference between a tooling hole and a mounting hole?

Mixing up tooling and mounting holes in your design files? This confusion can lead to manufacturing holds, incorrect assembly, or even unusable boards if the wrong holes are used for alignment or fixation.
The key difference lies in their purpose: Tooling holes are for process alignment during manufacturing and assembly stages. Mounting holes are for the final mechanical installation of the PCB into a product chassis.

While both are holes in the PCB, their functions, locations, and typical characteristics are distinct. Understanding this difference is vital for both PCB designers and manufacturing engineers to ensure a smooth workflow from production to final assembly.

Key Distinctions Summarized

Here’s a quick comparison based on my experience:

Specifying the correct type of hole in your design data (e.g., designating tooling holes clearly, ensuring mounting holes have appropriate clearances and plating status) prevents ambiguity. I always double-check these details in design reviews to avoid easily preventable manufacturing or assembly headaches later. Misusing one for the other's purpose simply doesn't work.

What is the purpose of via holes in PCB?

Wondering why your PCB layout has tiny, plated holes connecting different layers? Not understanding vias can lead to inefficient routing, signal integrity problems, or thermal issues in your design.
Via holes (Vertical Interconnect Access) are small, plated holes that create electrical connections between copper traces or planes on different layers of a multi-layer PCB. They allow complex routing in constrained spaces.

Vias are essential components in modern multi-layer PCBs. Without them, routing complex circuits with many components would be impossible, as traces would constantly block each other on a single layer. They allow signals, power, and ground to transition vertically through the board stack-up.

Functions and Types of Vias

Vias serve several critical functions:

1. Signal Routing: Connect signal traces between layers, enabling dense and complex layouts.
2. Power/Ground Distribution: Connect component power/ground pins to internal power and ground planes, ensuring low-impedance current paths.
3. Thermal Management: Multiple vias ("thermal vias") can be placed under heat-generating components to conduct heat away to larger copper planes or heatsinks on other layers.
   There are different types of vias, impacting complexity and cost:
   • Through-hole Vias: Drill through all layers of the PCB, from top to bottom. The most common and cost-effective type.
   • Blind Vias: Connect an outer layer to one or more inner layers, but do not go all the way through the board. Require more complex processing.
   • Buried Vias: Connect two or more inner layers but do not reach either outer layer. Add complexity and cost, used in high-density interconnect (HDI) designs.

Design considerations for vias include their size (drill diameter and pad diameter), aspect ratio (board thickness vs. drill diameter, affecting plating quality), placement (avoiding placement directly in SMT pads unless using via-in-pad techniques), and their impact on high-speed signal integrity (vias introduce impedance discontinuities). Properly using vias is a fundamental skill in PCB layout.

Which tool do you need to make holes on PCB?

Curious about how all those precise holes actually get made in a PCB? Specifying holes without knowing the manufacturing method can lead to designs that are difficult or expensive to produce.
Most holes in PCBs (vias, component leads, tooling, mounting holes) are created using high-speed CNC (Computer Numerical Control) drilling machines with specialized drill bits. For very small holes (microvias), laser drilling is often used.

Creating potentially thousands of holes accurately and quickly requires specialized equipment. The method used depends on the hole size, type, and the board technology level.

Common Hole Creation Methods

1. Mechanical Drilling:
   • Tool: CNC drilling machine with tungsten carbide drill bits. Multiple drill heads often work simultaneously on a stack of panels.
   • Process: The machine uses the Excellon drill file data from the design to position the panel and drill holes at precise X-Y coordinates. Different drill bits are automatically changed for different hole sizes.
   • Application: Standard through-holes (vias, PTH component leads, mounting holes, tooling holes).
   • Limitations: Minimum hole size is limited by drill bit strength (typically around 0.15-0.20mm). Aspect ratio limitations apply.
2. Laser Drilling:
   • Tool: UV or CO2 laser drilling systems.
   • Process: A focused laser beam ablates (vaporizes) the dielectric material and copper foil to create the hole. Can create much smaller holes than mechanical drills.
   • Application: Primarily for microvias (blind or buried) in High-Density Interconnect (HDI) PCBs. Essential for technologies like BGA packages with fine pitches.
   • Advantages: Creates very small holes (down to 0.05mm or less), precise control.
3. Punching (Less Common for Complex Boards):
   • Tool: Mechanical punch and die set.
   • Process: Physically punches holes through the board material.
   • Application: Mostly used for single-sided or simple double-sided boards in extremely high volume where precision is less critical (e.g., some consumer electronics). Less common for multi-layer boards.
   • Limitations: Lower precision than drilling, potential for material stress/fracture.
     After drilling (mechanical or laser), holes intended to be plated (PTH, vias) go through deposition and electroplating processes to create the conductive barrel connecting the layers. Non-plated holes (NPTH) skip these steps or are tented/plugged to prevent plating. The choice of drilling technology directly impacts the PCB capabilities and cost.

Conclusion

In short, PCB tooling is not optional—it's essential. It ensures your design is manufactured accurately, consistently, and cost-effectively, forming the bedrock of reliable electronic products.
